Board-Level Repair and Microsoldering: What Can Actually Be Fixed

A laptop that will not charge, power on, or recognize a USB device may have a failed motherboard. That does not always mean the entire board must be replaced.

Board-level repair means diagnosing and repairing the motherboard itself instead of replacing the complete assembly. The work may involve replacing a damaged charging controller, rebuilding a copper trace, repairing corrosion, or locating a short on a power rail. Microsoldering is the precision soldering used for these repairs, normally performed under magnification with controlled heat and specialized tools.

At ErlenTek in Auburn, board-level work begins with computer diagnostics and root-cause testing, not a guess based on the single symptom alone. A dead laptop could have a damaged DC jack, a failed charging circuit, a shorted capacitor, corrupted firmware, or a problem completely unrelated to the motherboard.

Board-Level Repair Versus Replacement

Replacement removes the entire motherboard and installs another one. That can be the most practical answer when a replacement board is available at a reasonable price, but board-level repair addresses the individual failure on the existing board. Common terms include:

• A Logic Board / Motherboard / PCB is the main printed circuit board containing all the critical micro-chips, pathways, and power systems of a device.
• A SMD / Surface-Mount Devices are tiny components (like capacitors, resistors, and diodes) mounted directly onto the surface of a board rather than using wire leads through holes.
• An IC (Integrated Circuit) / Chip is a small semiconductor block containing microscopic electronic circuits and logic gates that control major device functions.
• A DC jack is the physical connector that accepts power from a laptop adapter.
• A Pad: is a small circular or rectangular metal terminal point on a circuit board where a component or solder joint connects to a trace.
• A charging circuit manages adapter power, battery charging, and protection.
• A trace is a copper path that carries power or signals across the board.
• A via is a small plated hole that connects a trace from one layer of a multilayer board to another.
• Flux is a chemical cleaning and purifying agent applied to joints to help solder flow smoothly and prevent oxidation during heating.
• Solder mask is a plastic like agent that is usually UV cured in order to reseal an area - protecting copper, aluminum, and electrical interference.
• Reflowing: is the process of remelting existing solder on a joint to fix a weak connection or to remove/replace a component.
• A power rail is a voltage supply distributed through the board, such as an adapter input rail or a low-voltage rail for memory or the processor
• A Short to Ground is an issue where electricity flows directly into the board's ground plane instead of its designed pathway. This usually is caused by a failed capacitor or IC.

The distinction matters because a board can contain dozens of working circuits around one failed component. Replacing an entire board for one failed charging controller may be unnecessary. On the other hand, repeatedly reworking a board with widespread internal damage may cost more than a reliable replacement.

Motherboards have a remarkable talent for hiding one failed component behind twelve innocent-looking ones. That is why diagnosis matters more than visual drama.

Faults That Are Often Repairable

Board-level repair is most realistic when the damage is localized and the affected components or connections can be identified.

Examples include:

• Damaged laptop charging ports, USB ports, HDMI ports, and board connectors
• Cracked or cold solder joints, where solder has fractured or failed to bond correctly
• Blown fuses and protection components near an adapter or port
• Failed charging controllers, USB controllers, MOSFETs, or other power-management components
• Corrosion from liquid exposure, particularly around connectors and power circuits
• Damaged traces and vias that can be rebuilt with fine wire or controlled jumper work
• Shorted capacitors or other components pulling a power rail down
• Power-rail faults where a regulator, switch, or downstream component has failed

Board-level work can also include replacing precision soldered laptop charging ports, small resistors and capacitors, and integrated circuits with visible contacts, including Xbox retimers and voltage-regulator modules (VRMs). In plain language, a VRM is the circuit that converts and controls power for a processor, other major components, charging the battery, etc. Some parts remain more realistic candidates - certain BGA packages and other components with hidden solder connections may require a different level of precision. The decision depends on the board design and the damage, not on the component alone.

HDMI Port Repairs and Related Circuit Faults

At ErlenTek, HDMI-port repair has included PS5 consoles, Xbox Series X consoles, desktop PCs and laptops. That kind of work is not limited to swapping connectors though. The visible damage may involve bent or broken connector pins, lifted pads, torn traces, mechanical stress at the port anchors, or faults in nearby protection and signal components. In other cases, the HDMI port looks damaged but the surrounding circuit is the bigger issue: That is why the HDMI circuit should be checked before and after replacement. A successful repair may require confirming that the physical connector, the electrical path, and the nearby support components all test and behave as expected - ErlenTek always tests repairs with a multi-meter before reconnecting and fully verifying the repair.

A recent example involved an Xbox Series X with HDMI-circuit damage that required a rewire to restore the voltage path to the HDMI port. In plain terms, that kind of rewire rebuilds an electrical path when the original trace or connection is no longer usable. In this specific example, the U21 booster chip (an 4x4 BGA (ball grid array) chip was removed, and the pads rewired using 32 guage magnet wire - once tested, the area was coated with solder mask (to protect it), and the console was fully tested.

That does not mean every Xbox HDMI fault needs the same fix (this one is rare). Board layout, board revision, and the exact point of damage all matter and the repair has to be verified against the specific board rather than copied by assumption.

A Note on Solder Selection

For appropriate board repairs, ErlenTek often prefers high quality silver-bearing solder. That is not a blanket claim that silver-bearing solder is automatically better for every application though. When the alloy and the board are appropriate, silver-bearing solder can offer optimal wetting characteristics, great joint strength, better fatigue resistance, and high compatibility with lead-free board work, especially when compared with unsuitable or low-quality solder. Cheap generic solders general use low purity metals and substandard flux in less-than ideal ratios. When in doubt, Kester, MG Chemicals, and Radio Shack branded Solders are often considered best by professionals.

An important point is that solder performance depends on more than silver content alone, but quality is almost always a factor unless it is used primarily for cleaning tips and soldering speaker wire. Also, alloy selection, flux, temperature control, cleanliness, pad condition, and workmanship matter just as much. Good results come from matching the materials and process to the board, not from treating one solder type like a magic fix.

A Step-by-Step Guide to Board-Level Diagnosis

There is an order to doing most things correctly and professional board-level repair is no different. The exact test points vary by model and manufacturer documentation is alwyas preferred when available.

Step 1: Verify External Power

Begin outside the motherboard.

Check the wall power, adapter output, cable, connector fit, and any visible damage. A laptop may appear to have a dead board when the adapter is producing no output or the connector is mechanically damaged.

For desktop systems: The process includes checking the power supply, main connectors, and standby voltage. The external source should be verified or internal measurements often have little meaning.

Step 2: Analyze Current Draw

Current draw shows how the board responds when power is applied. A board drawing no current may have an open input path, blown fuse, damaged jack, or failed protection component. A board drawing excessive current may have a shorted rail or failed power component. Cycling current can indicate that the board is attempting to start and then shutting down under protection. These are basic guidlines though and not rules; every repair is a new one and: Every repair is different.

At ErlenTek, this stage is supported by a suitable bench power supply and measurement equipment so the board can be observed under controlled conditions rather than guesswork. Current patterns are clues, not a final diagnoses. The same reading can have different meanings depending on platform.

Step 3: Inspect Under Magnification

After power is isolated, inspect the board under magnification.

Look for:

• Corrosion or residue
• Burned or discolored components
• Cracked connectors
• Cracked capacitors
• Lifted pads
• Missing components
• Damaged traces
• Solder bridges
• Mechanical fractures around ports

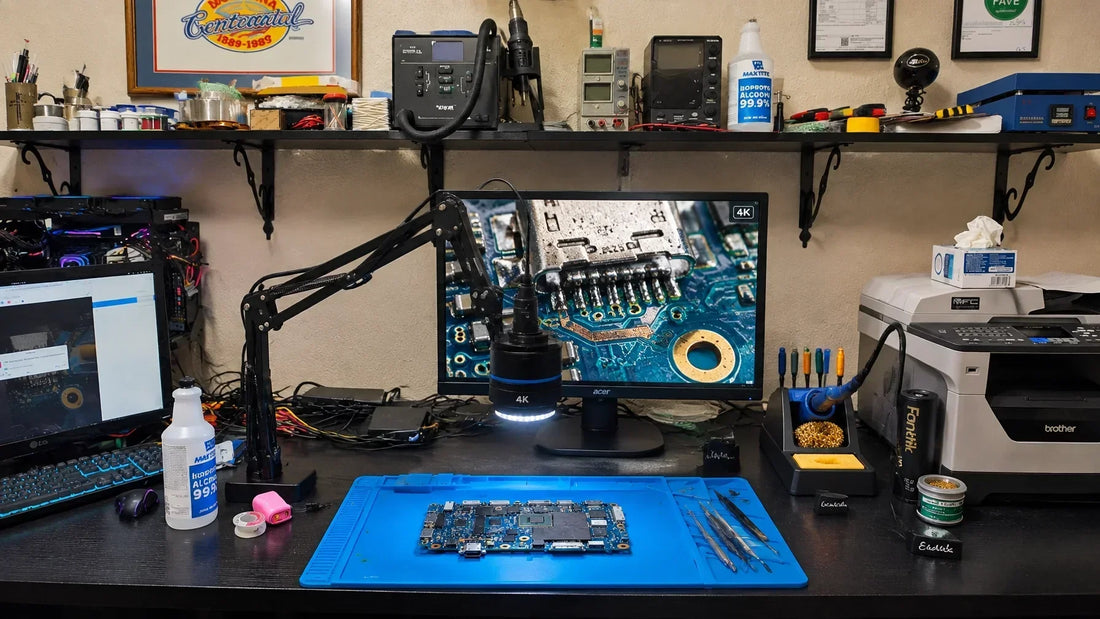

A 4K digital microscope displayed on a large monitor helps the inspection process substantially. Instead of viewing a tiny screen through a narrow eyepiece or tiny screen, the entire work area can be examined at a useful scale. Fine corrosion, hairline cracks, lifted pads, and damaged connector pins become much easier to document and compare.

Step 4: Measure Power Rails

A multimeter is a tool that all handy people should master, without proper multimeter use, we'd have anxiety before turning on a device after almost every repair. Once safe conditions are established, measure the board’s main input and secondary rails. Often, after testing the adapter input: Testing for voltage at the main coils (inductors) is a great place and allows for testing idividual rails. These are usually larger SMDs in comparison to others on the board, and have a metal connector on each side.

Measurements should be compared with the expected sequence and values for the specific board. Missing voltage may indicate a failed regulator, an absent enable signal, an open fuse, or a shorted downstream circuit.

Step 5: Check for Shorts to Ground

With the board unpowered, measure resistance or diode behavior on all power rails. A very low reading can indicate a short, although low resistance is not automatically abnormal on most processor or memory rails.

This is where model-specific documentation and/or comparison with a known-good board can prevent a misleading conclusion. If available, boardviews are one of the most helpful resources in component repair. They give an adjustable 3d map of all components, often with helpful descriptions, and direct mapping to other components on the board.

It is usually a good idea to perform a quick check of a multimeter before testing for shorts to ground - touching the probes together and making sure a beep sounds while in diode mode, or that voltage (or ohms in resistance mode) drop to almost zero before starting. If using the multimeter in resistance mode, zeroing out resistance with probes touching, or at least noting what zero resistance actually shows on the meter is also helpful.

As with testing voltage, testing for shorts between the ground-plane and the main coils (inductors) is a great place to start and may provide a good entry point for voltage injection when absolutely necessary (always start low, always inject less than rail is designed to handle, and know: this is at your own risk). We are choosing not to include voltage injection instructions due to risk, but this is often the next step when diagnosing this type of issue.

Step 6: Use Thermal Imaging

A thermal camera shows localized heat that may not be visible during inspection. A shorted capacitor, MOSFET, charging controller, or other component can become warmer than surrounding parts when power is applied under controlled conditions.

At ErlenTek, thermal imaging is used alongside current measurement, resistance or diode checks, microscope inspection, controlled hot-air rework, and board-level power analysis. A heat pattern by itself does not prove that a component is bad. It still has to be correlated with current draw, board layout, expected rail behavior, and direct electrical measurements.

A recent laptop repair is a good example of how specific those patterns can be: The board had a short on the battery-charging rail (found through the rails inducer) and before proceeding with voltage injection, I decided to plug in the ac adapter under our thermal camera. I then decided to show my wife the reason we spent the money on a better thermal camera and she was surprised (and a bit amused) as the shorted capacitor appeared to blink - it was rapidly heating up and cooling down as the PWM controller tried to bring the rail up over and over again.

This is definately one of the easier types of shorts to find and the repair was then completed with hot air and a matching capacitor from a donor board which I was able to find specs for by pulling and testing a parallel capacitor. That blinking behavior was useful because of its repeated startup attempts, but unfortunately not every shorted cap is as easy to discover.

Thermal imaging is most useful after the affected rail has been identified. It is not a substitute for current limiting and safe test procedures. Live probing and uncontrolled or inexperienced voltage injection can easily turn a repairable board into trash.

Why Correct Voltage Does Not Prove That a Board Is Good

A board may receive the correct adapter voltage and still remain completely dead.

The input voltage is only the beginning of the power sequence. The board must distribute that voltage through protection components, regulators, switching devices, enable signals, standby circuits, firmware controls, and multiple secondary rails. A failed controller can receive its expected input yet fail to generate the voltage needed by the embedded controller or processor.

A shorted downstream component can also pull a rail down after the input stage and in other cases, the power rails are present but a control signal, clock, firmware process, or communication line is missing.

Voltage answers one question: is electrical potential present at this point? AUnfortunately it does not answer whether the circuit can deliver stable current, whether a signal is being enabled, or whether the load is functioning.

In some cases, additional fault isolation may involve controlled voltage injection to help locate a shorted component on an already identified power rail. Again, that is a diagnostic technique, not a casual test. It belongs only after the rail is identified, the stock voltage reailized, the board design has been reviewed, and current limiting has been set appropriately. Applying voltage to an unknown rail is never a safe shortcut.

Liquid Damage: Dry Does Not Mean Safe

Liquid damage continues after the visible moisture disappears. Water, coffee, soda, and other liquids leave behind salts, minerals, acids, sugars, and other residues. Those contaminants can conduct electricity, attract moisture, and allow corrosion to form, and corrosion may continue to eat copper traces and component leads while the device sits unused.

If power is applied while contamination remains, current can flow through unintended paths that can turn a localized spill into damage across charging circuits, keyboard lines, display connectors, USB circuits, or multiple board layers.

Powering on  a device after a spill is almost always a bad idea as energized contamination often creates shorts and the electricity can accelerate corrosion. The safest thing to do after a liquid spill is to:

1. Confirm the device is powered off.
2. Disconnect the charger and accessories.

3. Arrange inspection and cleaning before power is applied again.

Cleaning is not the same as wiping the outside of the case. Liquid often travels beneath shields, connectors, chips, and protective films. If it is not IP rated, it is probably not safe. After cleaning, the board often requires cleaning, magnified inspection, and electrical testing.

The iFixit Electronics Water Damage guide explains the importance of disassembly, contamination removal, and complete drying. Apple also identifies liquid damage as accidental damage outside of the standard Mac warranty in its official liquid-damage guidance.

When Repair Is Not Practical

Some boards are not good candidates for component-level work.

The honest answer may be replacement when there is:

• Severe delamination (internal board layers separate)
• Extensive corrosion across multiple internal layers
• A badly warped board
• Damage beneath large BGA packages that cannot be properly verified
• A proprietary chip that is unavailable or permanently paired to another board
• Multiple unrelated failures after a major electrical event
• * A repair estimate approaching the cost of a similar replacement machine

* A board may be technically repairable but economically unreasonable. The decision should consider the machine’s age, replacement value, battery condition (when applicable), parts availability, remaining service life, data importance, and the probability of additional hidden damage.

Repair, Replace the Assembly, or Replace the Machine?

This decision should usually be made after proper diagnosis.

Board-level repair may make sense when the fault is localized, the device has meaningful remaining life, replacement boards are expensive or unavailable, and data preservation is an important factor. Assembly replacement may be worth considering when a new or tested board is economical and available, and the labor cost or risk is lower (if performing on your own).

Replacing the entire machine may be more sensible when the system is aging, has a failing battery, lower quality display, uses outdated hardware, or requires several expensive repairs at once.

Data requires separate although important consideration. A motherboard failure does not automatically mean that files on the storage device are lost. If the SSD (or HDD in older systems) is removable and healthy, data may be accessible through another system. Unfortunately, some modern computers use soldered storage, hardware-backed encryption, or security components tied to the original board. A board replacement can therefore affect data access even when the data is uncompromised.

At ErlenTek, data preservation always takes priority over unnecessary power-on attempts and unnecessary board rework. A repair should always stop when continued effort creates more risk than value.

Realistic Expectations for Board-Level Work

Board-level work can sometimes be riskier than assembly replacement - components may be tightly packed, internal damage may be hidden, and a board can have failures that only appear after the first fault is corrected. Also, Board-level repair cannot carry the same certainty as replacing with a new component with a manufacturer warranty. No guarantee can be made before the board is inspected, cleaned (when appropriate), measured, and tested.

Frequently Asked Questions

Is microsoldering worth it?

Microsoldering is often worth considering when the machine is otherwise in good condition, the fault can be localized, replacement boards are costly, or the data has special importance. It is less attractive when the device is old and several major assemblies are already failing.

Can a repaired board be trusted?

A repaired board can be reliable when the root cause is identified, the damaged area is restored properly, and the completed system passes functional and stability testing. That may include confirming power-rail behavior, connector integrity, microscope inspection of the finished solder work, and post-repair function checks. Board-level work still carries more uncertainty than replacing an intact assembly, especially after liquid damage.

Does board repair risk data?

Any repair involving the motherboard carries risk, particularly when storage is soldered or encryption keys depend on the original board. The safest approach is to prioritize data access and avoid unnecessary power cycles before a repair as SSDs do not handle power cycling well.

How long does board repair take?

An initial diagnostic may take a few business days. Identified repairs are typically faster; corrosion, unavailable components, and repeated testing can extend the process. A firm timeline is not practacal until the board is inspected.

Is board-level repair cheaper than a new machine?

Often, but it can vary by device and age. Individual component repair often costs less than a replacement motherboard or a new computer. If damage is widespread or the machine has limited remaining life, replacement may provide better value. The comparison should include reliability, data access, parts availability, and future repair risk.
