PS5 Overheating? Why 'Canned Air' Isn’t Enough for Your Console in Auburn
It usually happens right in the middle of a high-stakes session. The screen flashes a dreaded warning: "Your PS5 is too hot. Turn off your PS5 and wait until the temperature goes down." Or, worse, the console simply cuts to black without warning, leaving a silent, dark living room and a frustrated gamer. Auburn or Kent - we have a solution.
The immediate instinct for many is to reach for a can of compressed air. It seems like a logical, quick fix: blow a few bursts into the vents, hope for a cloud of dust, and get back to the game. However, at ErlenTek, we frequently see consoles where this "quick fix" has actually accelerated the problem or, at best, merely masked a much deeper hardware failure.
If a PlayStation 5 is shutting down under load, the issue is rarely just a few dust bunnies in the outer plastic fins. To ensure long-term reliability, we must look at the root cause, which often involves the console’s complex internal cooling architecture and its specialized liquid metal thermal compund.
Recognizing the Symptoms of PS5 Thermal Failure
Before a console reaches the point of a total shutdown, it usually provides several warning signs. Recognizing these early can prevent permanent damage to the APU (Accelerated Processing Unit).
- The "Jet Engine" Fan: While the PS5 is designed to be remarkably quiet, a fan that consistently ramps up to high speeds during menu screens or less demanding games is a sign that the system is struggling to remove heat.
- Sudden Power-Offs: If the console shuts down instantly during graphically intensive games (like God of War Ragnarök or GTA 5) but stays on during media streaming, this is a classic symptom of a thermal protection trigger.
- Performance Throttling: Noticeable frame rate drops or stuttering that wasn't there before can be the system down-clocking itself to stay within safe temperature limits.
- External Heat: If the rear exhaust of the console feels unusually hot: or conversely, if the air coming out is cold while the console is screaming: there is a disconnect in the heat transfer chain.
Why 'Canned Air' is a Band-Aid (and Potentially Dangerous)
Compressed air is a staple of basic computer diagnostics, but for the PS5, its utility is limited. Using it improperly can lead to several complications that we have had to rectify in our Auburn office.
Pushing Dust Deeper
The PS5 has deep, internal heatsink fins and a very specific intake for the power supply unit (PSU). When air is blasted into the external vents, it often just pushes the dust further into the "catch" areas or, more dangerously, into the PSU's tiny ventilation holes. Once the PSU vents are clogged, the power supply itself can overheat and shut down the system, even if the main processor is relatively cool.
Propellant and Moisture Issues
Canned air isn't just air; it’s a chemical propellant. If the can is tilted or shaken, it can spray a freezing liquid onto sensitive internal components. This sudden temperature shift can cause microscopic fractures, leave behind a residue that attracts even more dust over time, or cause condensation to build up in that area temporarily.
Fan Bearing Damage
Blasting high-pressure air directly into the fan can cause it to spin at RPMs far beyond its design specifications. This can wear out the bearings prematurely, leading to a noisy, rattling fan that eventually fails.
A Common Culprit: Liquid Metal Oxidation and 'Dry Spots'
The PlayStation 5 is unique because it uses liquid metal instead of traditional thermal paste to bridge the gap between the processor and the heatsink. Liquid metal is incredibly efficient at transferring heat, but it is also much more temperamental than standard paste.
At ErlenTek, we have found that some overheating PS5s suffer from liquid metal oxidation. Over time, the liquid metal can react with the surfaces it touches, forming a dull, crusty layer known as a "dry spot."
When a dry spot forms, usually in the center of the APU where the heat is most intense, the liquid metal no longer makes a perfect contact. This creates a pocket of air or oxidized material that acts as an insulator rather than a conductor. The result? The processor's temperature spikes in seconds, the fan goes into overdrive, and the system shuts down to prevent a catastrophic failure. No amount of canned air can fix an oxidation spot on the processor, and the cleaning and application of new compound can permanently destroy a PS5.
The ErlenTek Approach: Systematic Restoration
When a console is brought to us for computer repair in Auburn, we don't guess. We follow a methodical process to restore the system to factory-spec cooling performance.

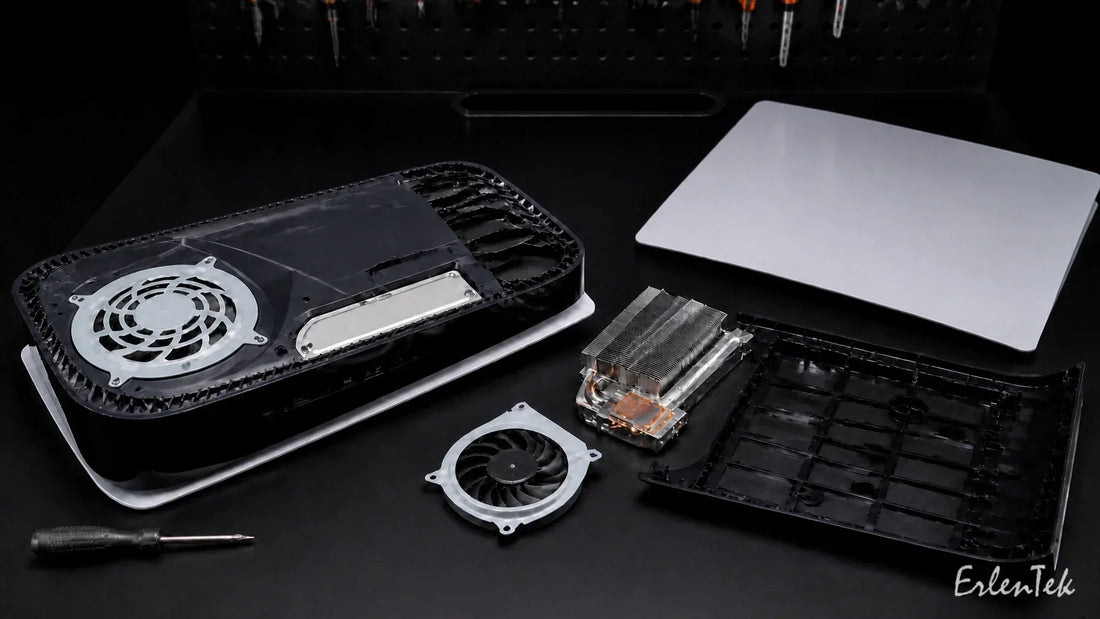

- Full Teardown: We go beyond the outer covers. Jeremy performs a disassembly to reach the core cooling stack.
- Power Supply Cleaning: We specifically target the internal PSU vents, which are the most common cause of "no-warning" shutdowns.
- Heatsink Decontamination: The massive wrap-around heatsink is cleaned using specialized tools and low-pressure, filtered air to ensure every fin is clear.
- Thermal Testing: After a partial reassembly, we run the console through a series of stress tests using demanding titles to monitor the fan curve and exhaust temperatures, ensuring the "root cause" has been resolved. If the PS5 passes, the console is good to go for at least another year, if not, we move onto step 5.
- Liquid Metal Refresh: This is sometimes the most critical step. We disassemble the unit again and carefully remove any oxidized material from the APU and heatsink surfaces, then "re-wet" the area with high-quality liquid metal. We ensure a perfect, mirror-like application that covers the entire die without any gaps.
- Retest
A Note on DIY Risks
While there are many tutorials online, servicing a PS5's cooling system is not a beginner-level project. Liquid metal is highly conductive. A single microscopic drop landing on the motherboard instead of the processor can cause a short circuit that permanently destroys the console.
Furthermore, the PS5 uses a series of delicate ribbon cables and specialized screws that are easily stripped or snapped. At ErlenTek, we have the proper ESD-safe environment and precision tools to handle these components safely.
Frequently Asked Questions
How often should I have my PS5 cleaned? For most homes in South King County, a professional deep clean every 12 to 18 months is ideal. If the home has pets or the console is kept in an enclosed cabinet, it may need service more frequently.
Does a vertical vs. horizontal orientation matter? There has been much debate about liquid metal "leaking" in the vertical position. While the PS5 has a robust seal to prevent this, the vertical position can sometimes exacerbate the formation of dry spots if the liquid metal migrates slightly over years of heat cycles. Both orientations benefit from periodic maintenance.
Is it worth repairing an older PS5? Absolutely. A cooling system refresh is significantly more cost-effective than purchasing a new console, and once the liquid metal and dust issues are addressed, these systems are remarkably durable and reliable.
Get Your Console Back in the Game
Don't let a "Too Hot" warning turn your PlayStation into a paperweight. If your console is struggling, loud, or shutting down, it needs more than a quick blast of air. It needs a professional diagnostic and a systematic clean.
At ErlenTek, we provide transparent, honest service for homeowners and gamers in Auburn, Kent, Covington, and Maple Valley. We focus on getting the job done right the first time so you can get back to it.
Contact us today to schedule your service:
- On-site: We can come to you for initial diagnostics.
- Office: Drop off your console at our Auburn-area workspace.
- Online: Submit a support ticket here to get started.
